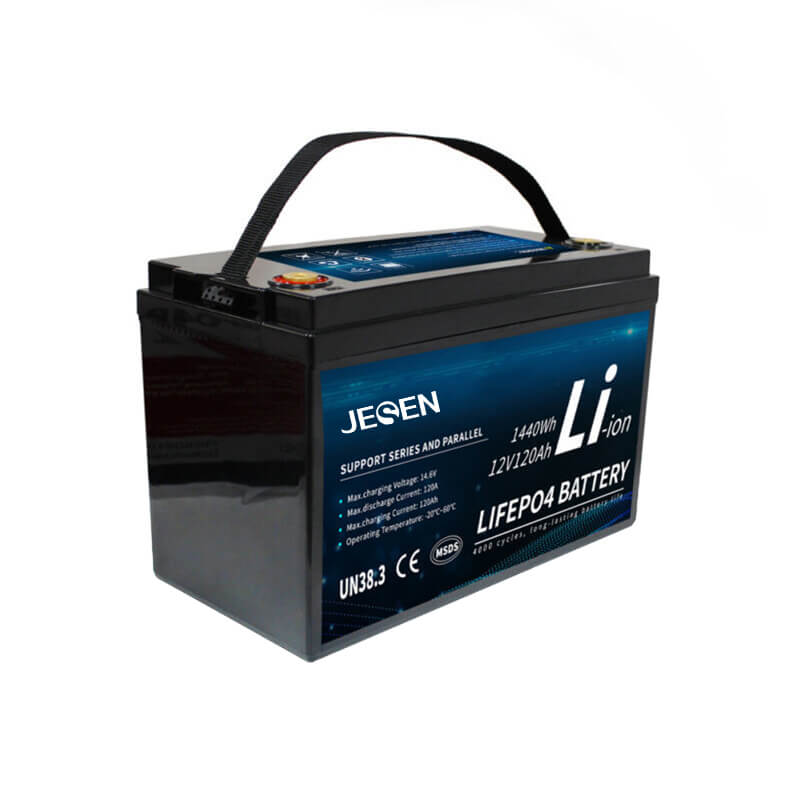

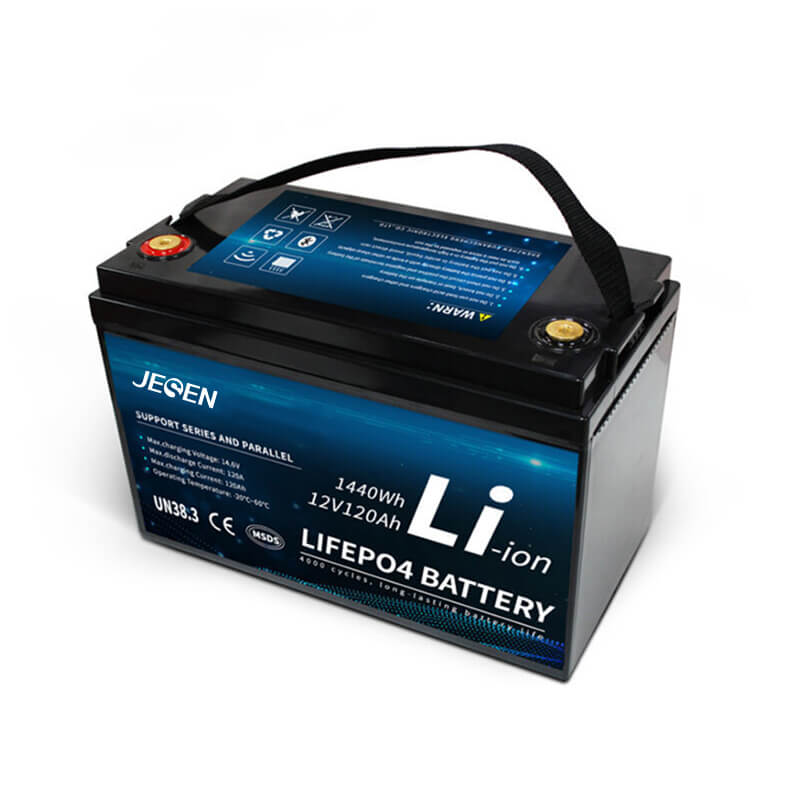

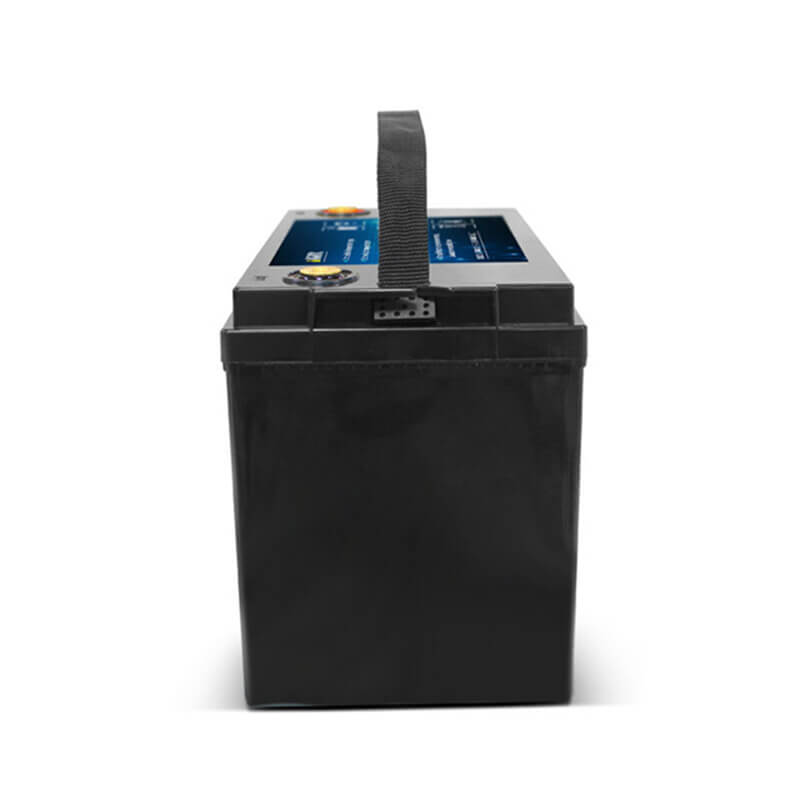

12V 120AH Lifepo4 Batteries For Energy Storage System

MODEL NO.: 12V120AH

  • 12V lithium battery module
  • Max up to 4000 cycle times
  • With the overcharge and overdischarge protection function
  • With the overcurrent and shortcircuit protection function
  • With the overtemperature protection function
  • Application for off-grid solar power system
  • Excellent standby self-consumption
  • Intelligent BMS equipped inside to maintain the battery always work at best condition
  • 5-10 years life time, LiFePO4 battery, more stable and safe

send inquiry Whatsapp

Data Sheet

Model12V 120AH
Nominal Paramenters
Nominal Voltage12V
Capacity120AH
Energy1440WH
Dimensions328*171*215mm
Weight14.4KG
Basic Parameters
Life cycles4000 Cycles
Operation Temperature(-20℃~60℃）
CommunicationRS232,RS485,CAN
CertificationsCE,Rohs, FCC, UN38.3, MSDS
Management SystemBuilt in BMS
Warranty BAT10 Years
Electrical Parameters
Max Charging Voltage14.6V
Maximum Charging Current120A
Maximum Discharging Current120A
Max Power1440WH
