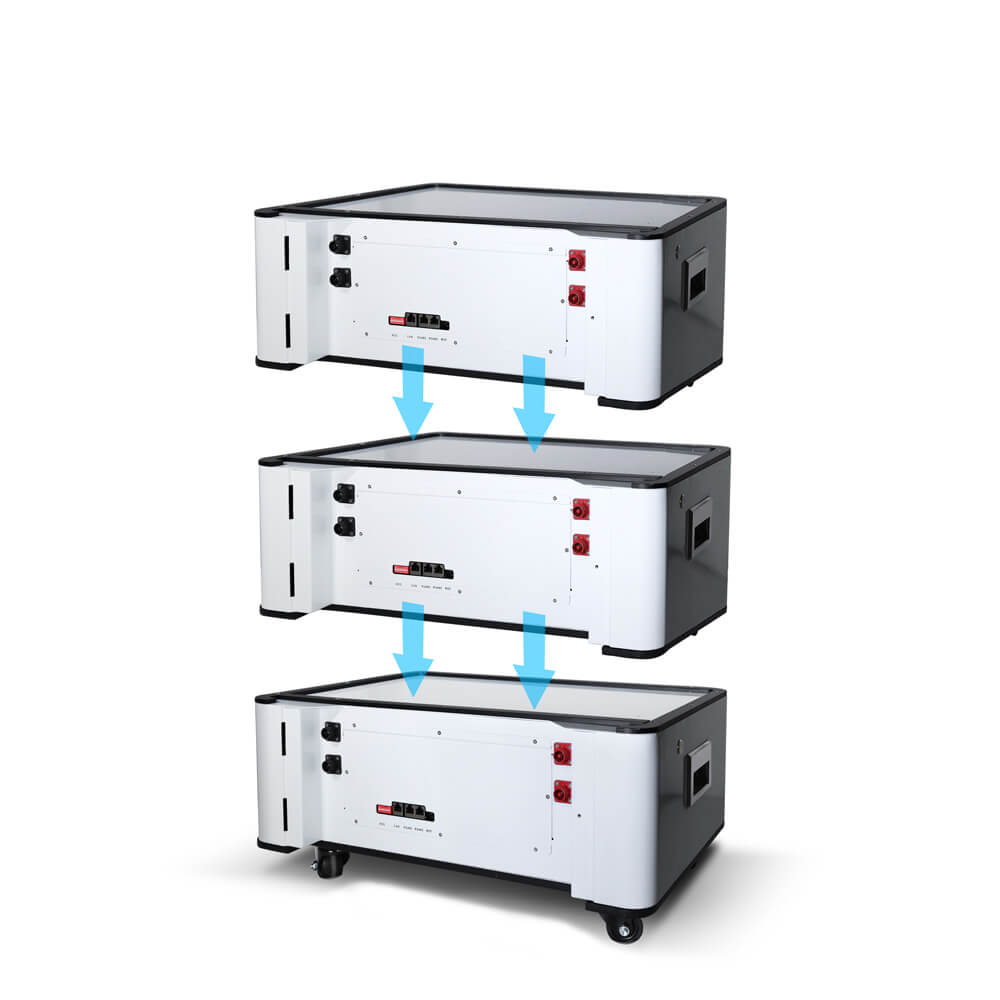

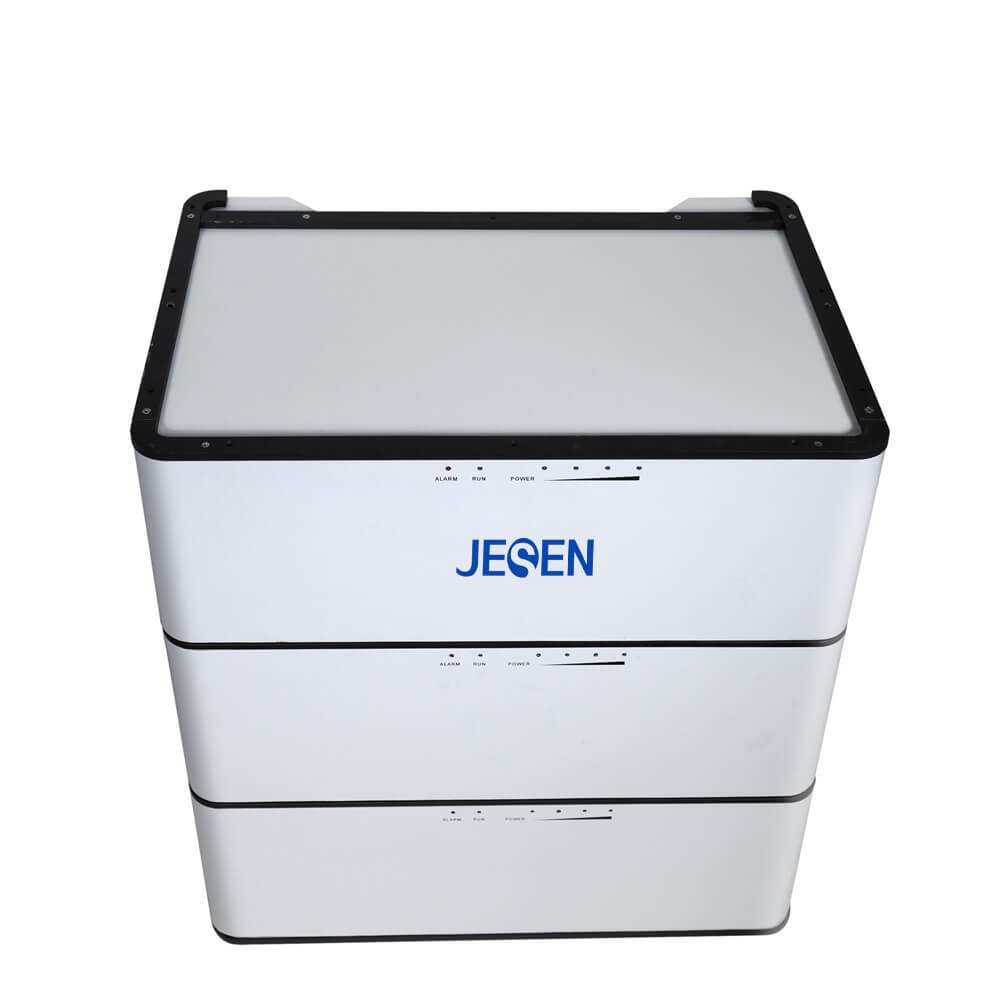

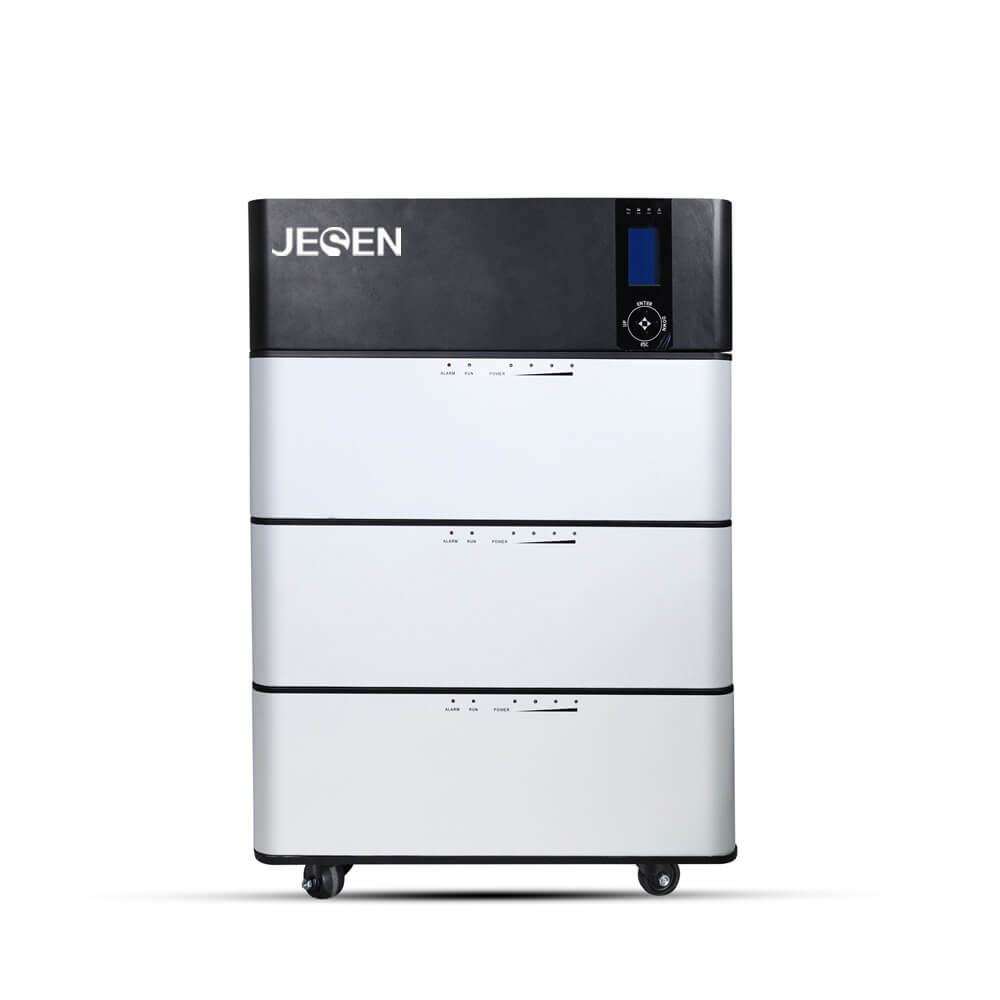

Home Energe Storage Batteries With Bulit-in Controller & Inverter
MODEL NO.: Mobile Stackable
Battery
- Material: LiFePo4 lithium ion battery
- Capacity: 48V 100Ah (actual 51.2V 120Ah)
- Max Charging Current: 100A
- Recommended Charging Current: 10A-50A
- Max Discharging Current: 200A
- Working Temperature: – 20 – 75 ℃
- Cycle Life: 4000 times on 80% DOD, 0.2C Charge & Discharge, under temparature: 0-30 ℃
(Connecting in series NOT supported. ✖) - Compatible with most of top brands inverters. (Deye, Growatt, Victron, Pylontech, Solis, Sungrow, Sofar, SMA, etc. Please refer to our catalogue

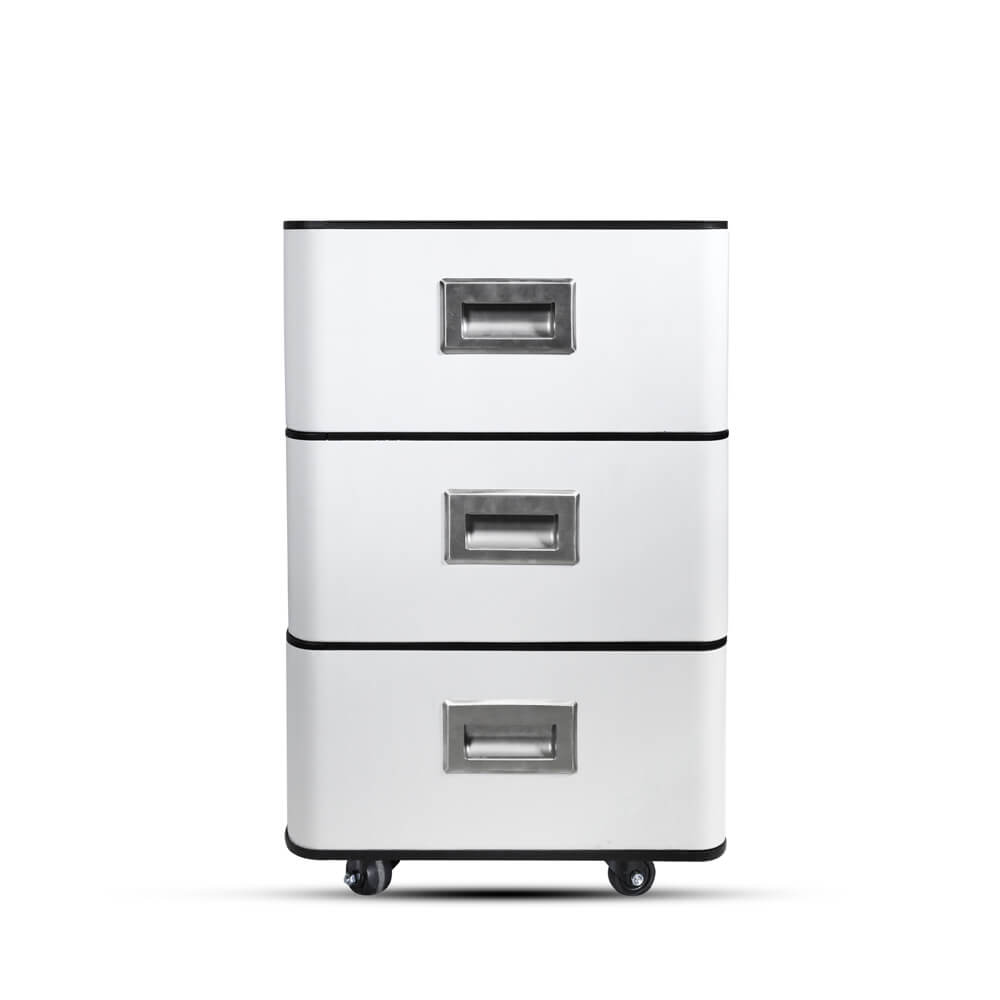

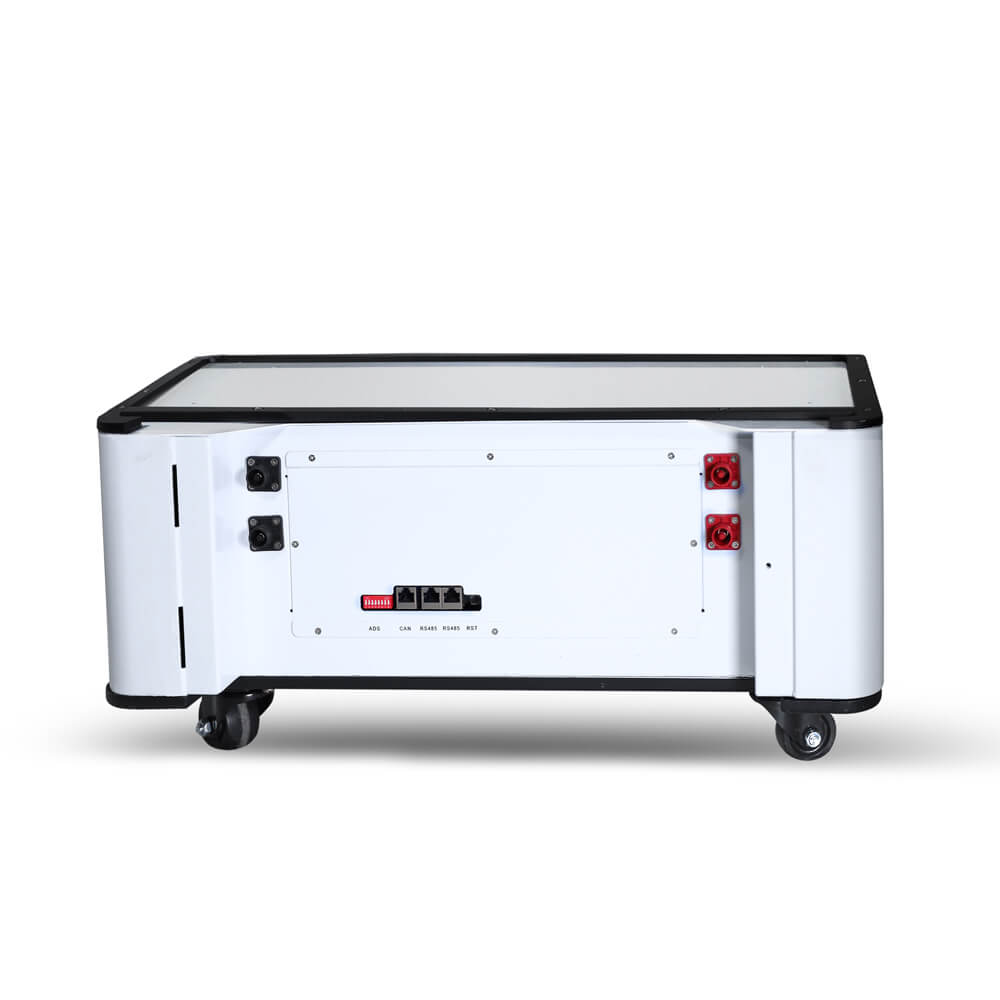

Wheeled Holder (Optional)
-
Metal wheeled holder
-
4 Omni-directional wheels equipped;
-
Max Weight Limit: 500KG
Data Sheet
Model | 12V 180AH |
Nominal Paramenters | |
Nominal Voltage | 12V |
Capacity | 180AH |
Energy | 2160WH |
Dimensions | 328*171*215mm |
Weight | 14.4KG |
Basic Parameters | |
Life cycles | 4000 Cycles |
Operation Temperature | (-20℃~75℃) |
Communication | RS232,RS485,CAN |
Certifications | CE,Rohs, FCC, UN38.3, MSDS |
Management System | Built in BMS |
Warranty BAT | 10 Years |
Electrical Parameters | |
Max Charging Voltage | 14.6V |
Maximum Charging Current | 100A |
Maximum Discharging Current | 200A |
Max Power | 2450WH |
