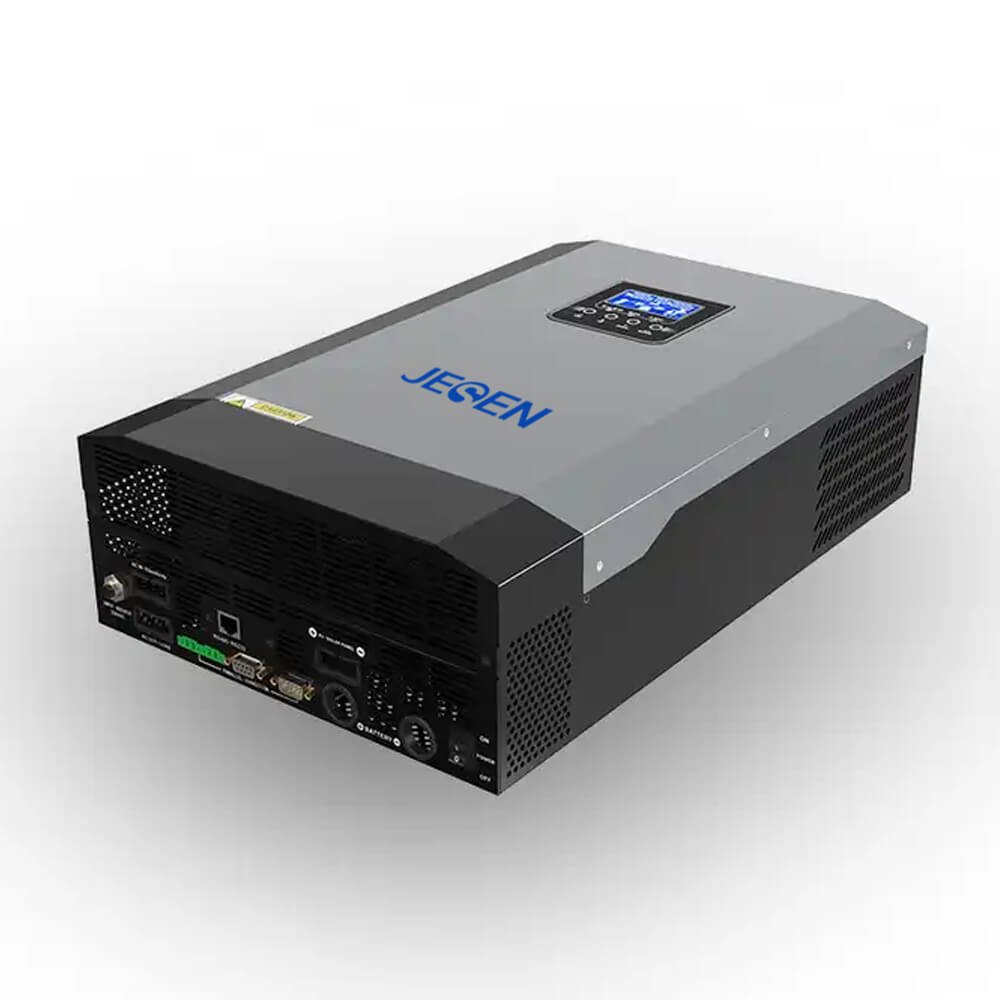

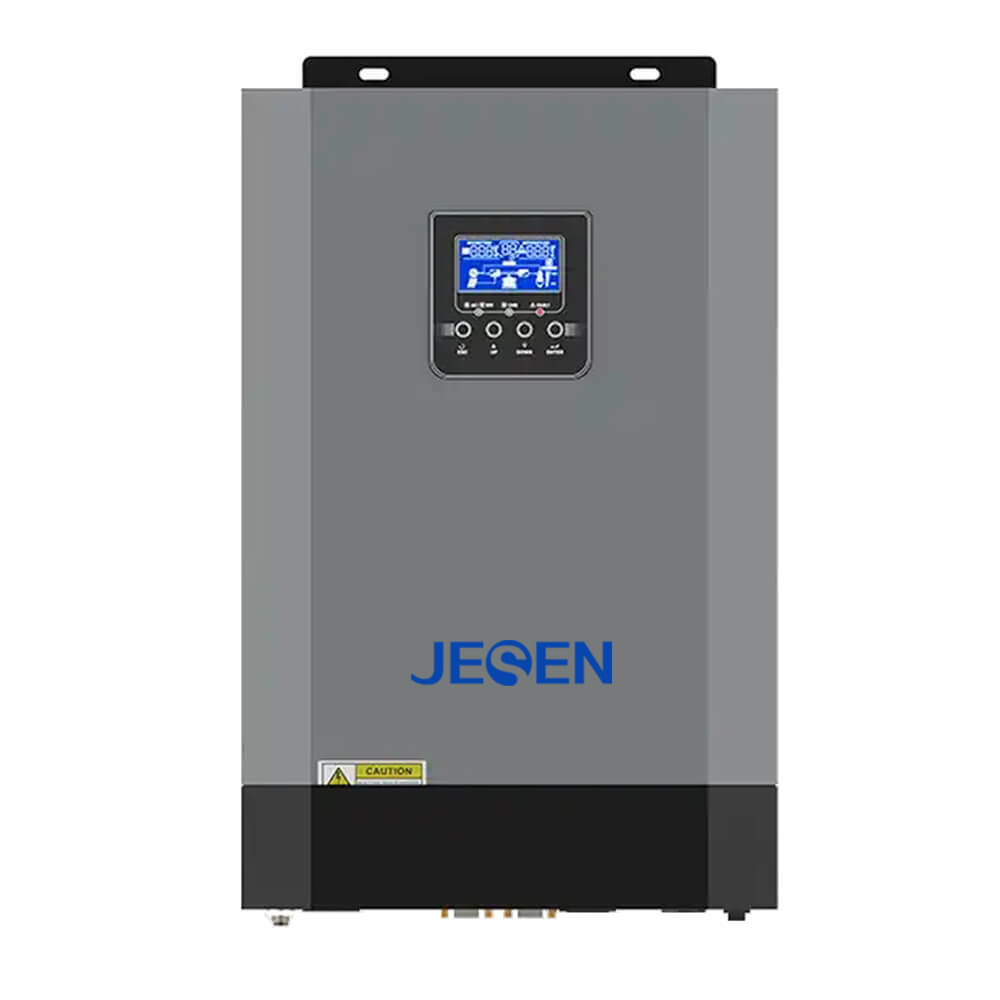

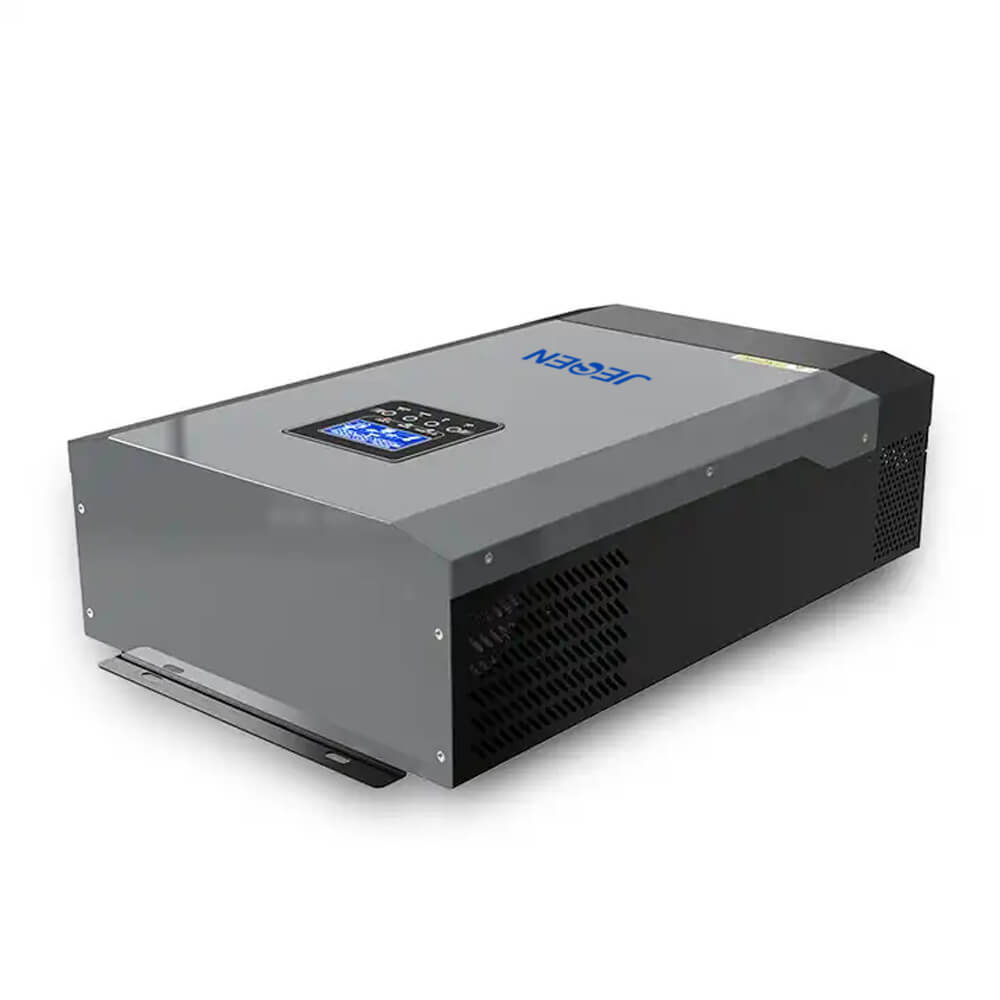

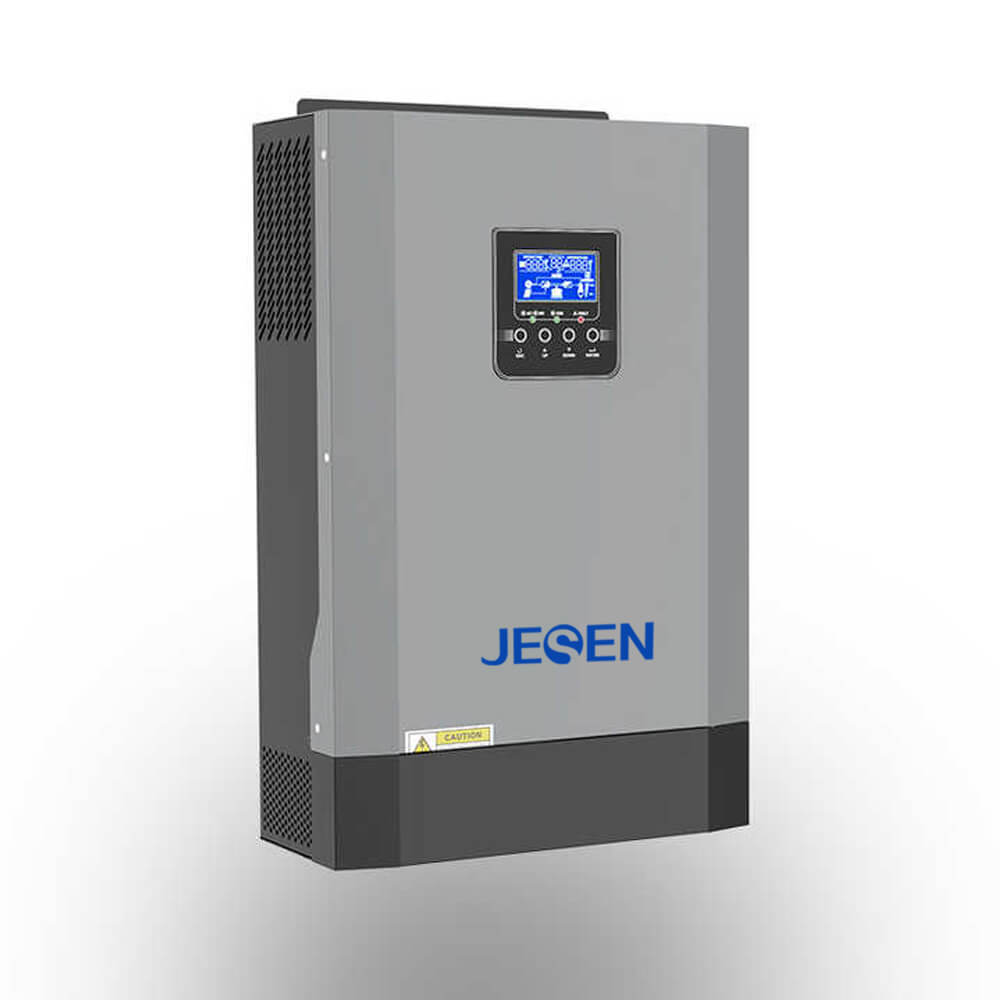

OFF Grid Solar Inverter-3.5KW/5.5KW
Model No.: MPS-H Series (3.5KW/5.5KW)
- Pure sine wave output
- Output power factor 1.0
- Programmable supply priority for PV, battery or Grid
- User-adjustable charge current and voltage
- Wide PV input range(120Vdc-500Vdc), 110A MPPT SCC
- Use with lithium batteries
- Working without batteries in sunny day
- WiFi Monitoring Function(optional)
- Anti-dusk kit for harsh enviroment(optional)
- PV and electricity complementary
Data Sheet
| MODEL | MPS-3500H | MPS-5500H | ||
| Rated Power | 3500VA/3500W | 5500VA/5500W | ||
| INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 170-280VAC(for personal computers) | |||
| 90-280VAC(for home appliances) | ||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
| Surge power | 7000VA | 11000VA | ||
| Transfer Time | 10ms (for personal computers) | |||
| 20ms (for home appliances) | ||||
| Wave form | Pure Sine Wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 24VDC | 48VDC | ||
| Floating Charge Voltage | 27VDC | 54VDC | ||
| Overcharge Protection | 33VDC | 63VDC | ||
| Maximum charge current | 80A | |||
| SOLAR CHARGER | ||||
| MAX.PV Array Power | 5000W | 6000W | ||
| MPPT Range@ Operating Voltage | 120-500VDC | |||
| Maximum PV Array Open Circuit Voltage | 500VDC | |||
| Maximum Charging Current | 110A | |||
| Maximum Efficiency | 98% | |||
| PHYSICAL | ||||
| Dimension.D*W*H(mm) | 472*297*129mm | |||
| Net Weight (kgs) | 9.5kg | 10.5kg | ||
| Communication Interface | RS485/RS232(Standard) | |||
| LCD remote/WIFI(Optional) | ||||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(No-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
